Smart valves
very suitable
for irrigation systems
Safely and effectively
Management is possible.

The Smart Valve provides lightening of the interfacially optimized 300A structure (from 400mm on the previous gate valve to 76mm (a reduction of 324mm)) as well as leak protection, modulation control, and both vertical and horizontal installation.
Products range from 400A and below (50A, 80A, 100A, 150A, 200A, 250A, 300A, 400A).


Smart Valves

  • Smart valves

  • Smart valves

  • Smart valves

  • Smart valves

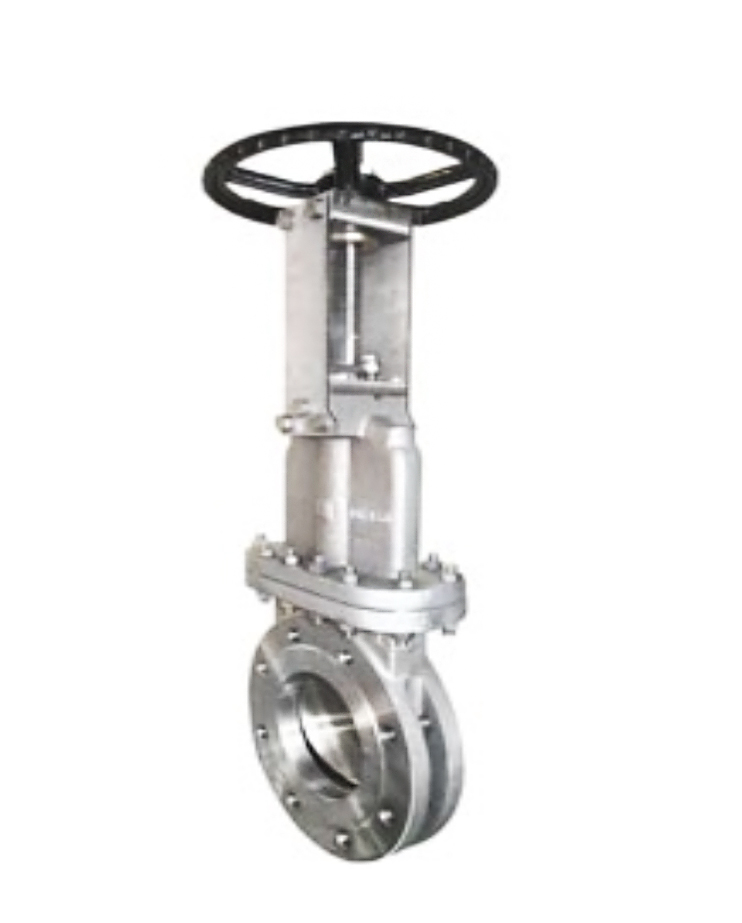

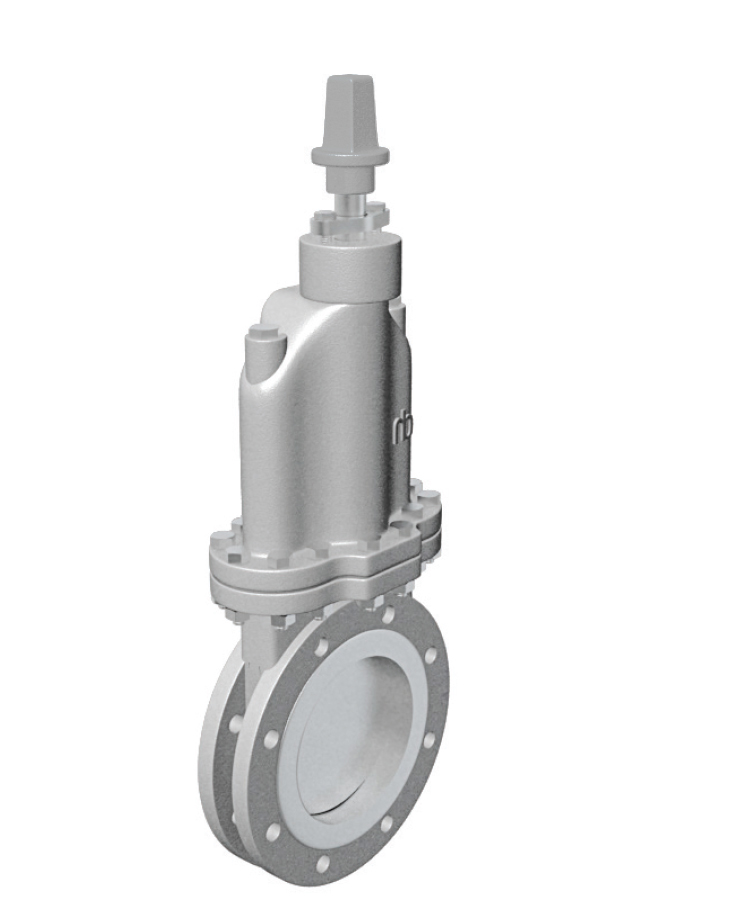

External thread type

  • Handle type

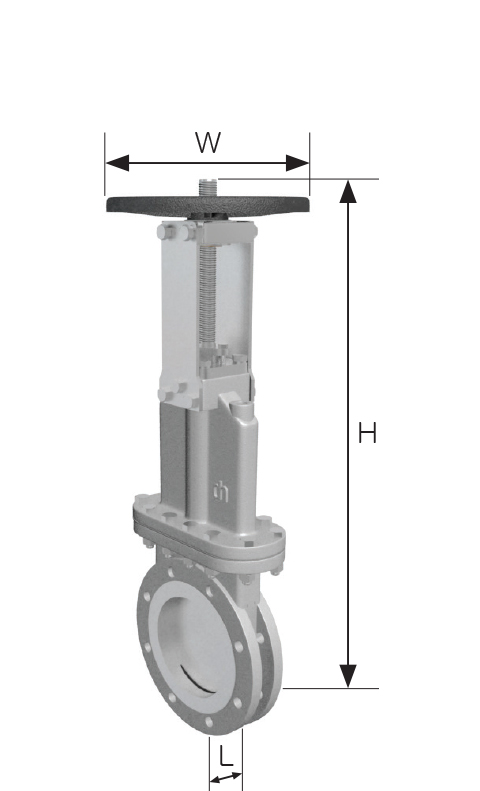

    핸드휠타입
    Handle type
      Height
    (H)     		Handle diameter
    (W)     		Weight(kg)
    L1 L2
    50A 498 Ø200 16 26
    80A 602 Ø200 24 34
    100A 704 Ø200 36 46
    125A 810 Ø280 45 60
    150A 915 Ø280 62 82
    200A 1121 Ø280 79 100
    250A 1355 Ø355 106 131
    300A 1689 Ø400 167 200
    350A 1739 Ø400 196 231
    400A 1995 Ø450 233 272
    450A 2209 Ø450 302 352
    500A 2393 Ø500 385 445
    600A 2936 Ø500 476 560
    650A 3091 Ø500 508 590
    700A 3244 Ø500 521 621
    750A 3324 Ø500 552 662
    800A 3404 Ø500 583 700
    900A 3561 Ø500 612 812

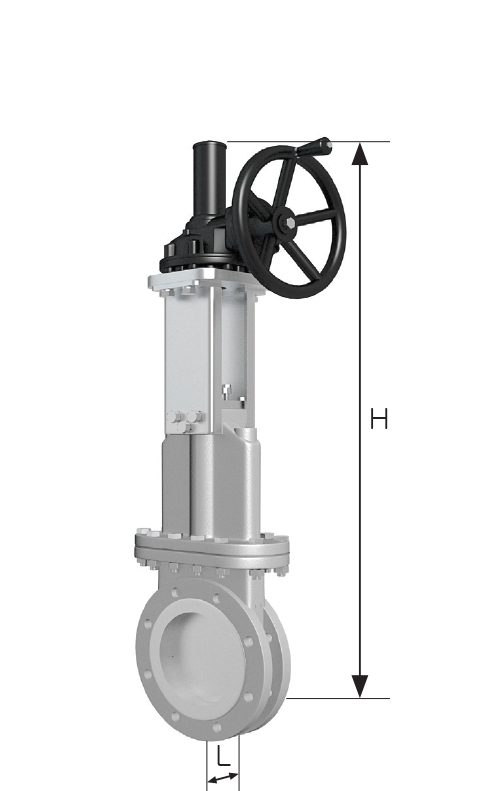

  • 기어 타입

    Gear type
    Gear type
      Height
    (H)     		Weight(kg)
    L1 L2
    50A 575 28 38
    80A 689 36 56
    100A 817 48 66
    125A 892 59 79
    150A 1056 79 97
    200A 1225 99 117
    250A 1419 136 160
    300A 1650 199 227
    350A 1824 224 259
    400A 2130 273 305
    450A 2178 357 390
    500A 2447 440 468
    600A 2755 531 574
    650A 2925 558 598
    700A 3105 587 627
    750A 3193 615 665
    800A 3280 642 698
    900A 3543 677 750

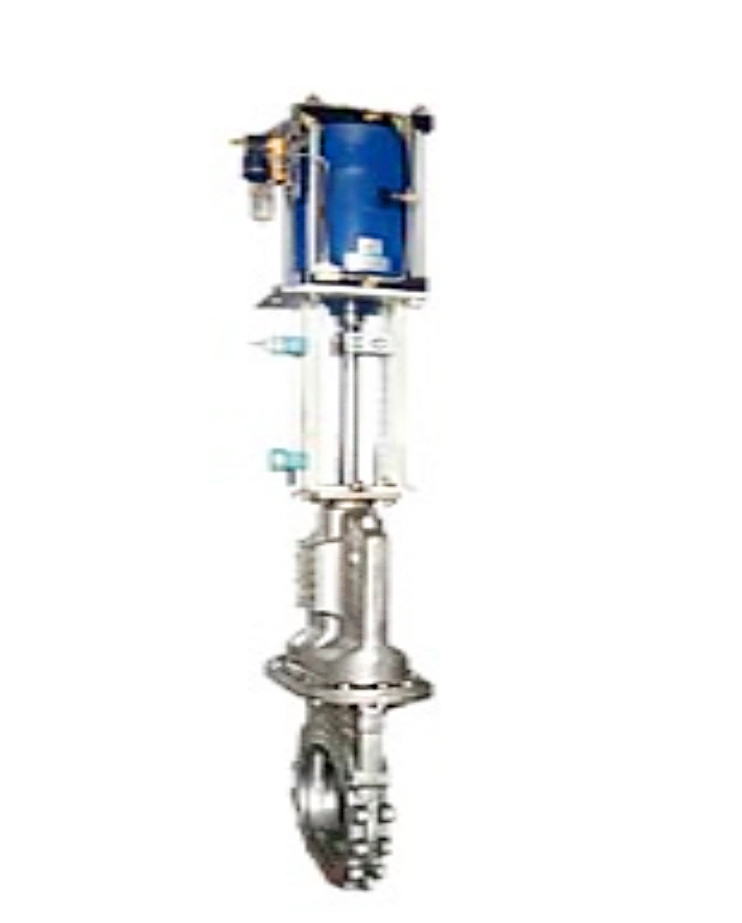

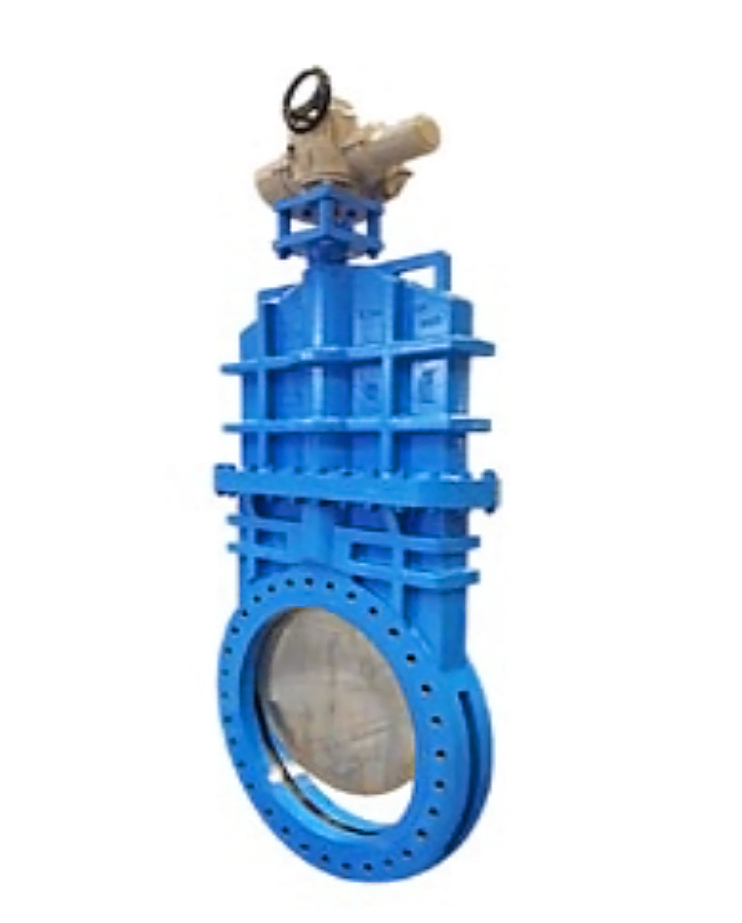

  • Pneumatic cylinder type

    공압실린더타입
    Pneumatic cylinder type
      Height
    (H)     		Weight(kg)
    L1 L2
    50A 568 38 48
    80A 662 46 56
    100A 807 56 70
    125A 885 69 89
    150A 1018 89 100
    200A 1200 109 129
    250A 1487 146 171
    300A 1903 209 229
    350A 2018 240 265
    400A 2309 288 318
    450A 2629 370 410
    500A 2799 480 430
    600A 3349 570 620
    650A 3493 590 650
    700A 3804 630 700
    750A 3896 655 740
    800A 3985 697 797
    900A 4303 730 820

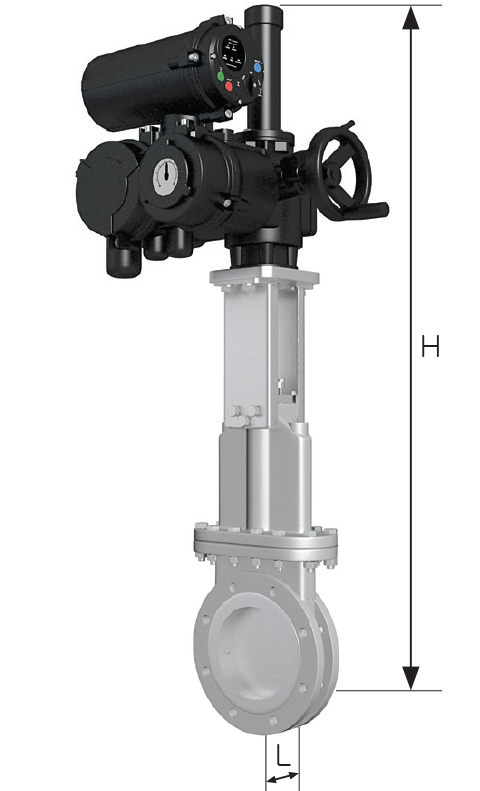

  • Motor type

    Motor type
    Motor type
      Height
    (H)     		Weight(kg)
    L1 L2
    50A 608 48 58
    80A 712 56 66
    100A 847 68 78
    125A 925 79 95
    150A 1061 99 114
    200A 1285 119 139
    250A 1437 156 176
    300A 1854 219 239
    350A 1968 250 270
    400A 2238 298 320
    450A 2473 382 405
    500A 2703 465 495
    600A 3259 556 596
    650A 3403 583 630
    700A 3714 612 670
    750A 3805 640 700
    800A 3896 667 740
    900A 4215 702 790
Dimensions from inlet to outlet [Knife gate valve for water supply (standard for water supply valves) / AWWA C520 / MSS SP-135]
Size
Pressure class
 50A 80A 100A 125A 150A 200A 250A 300A 350A 400A 450A 500A 600A 700A
Small of Dimensions from inlet to outlet
(mm) L1		 10K / 150LB 51 51 51 57 57/70 70 70 76 76 89 89 114 114 181
20K / 300LB 70 70 70 80 80 89 119 127 140 140 156 189 216 254
Small of Dimensions from inlet to outlet
(mm) L1		 10K / 150LB 134 140 140 154 164 164 180 180 198 232 240 252 286 324
20K / 300LB 150 165 180 194 210 220 245 260 285 338 350 380 430 510
Torque
(N.m)		 10K / 150LB 20 20 25 28 36 36 40 45 50 55 60 71 80 91
20K / 300LB 22 22 30 40 50 66 78 90 110 130 150 170 190 230

안나사 형식

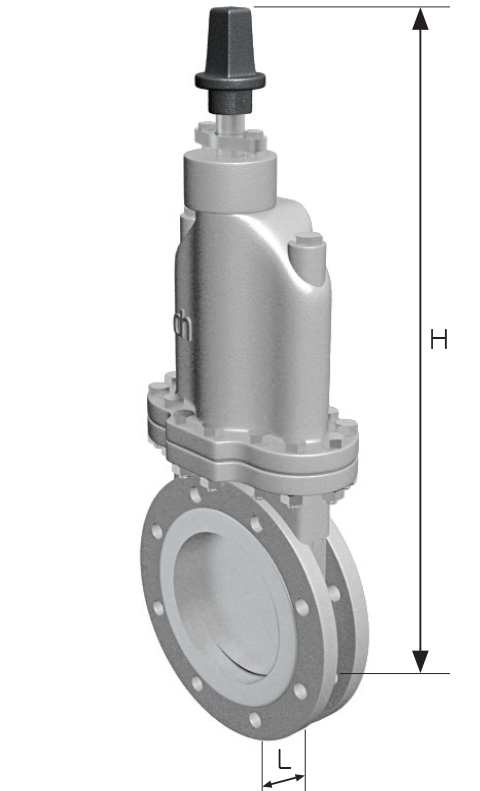

  • 캡 타입

    캡 타입
    캡 타입
      Height
    (H)     		Handle diameter
    (W)     		Weight(kg)
    L1 L2
    50A 290 12 13 23
    80A 330 13 20 30
    100A 400 14 30 40
    125A 450 15 40 50
    150A 500 18 55 70
    200A 539 24 70 85
    250A 630 25 98 115
    300A 820 30 115 190
    350A 900 34 180 215
    400A 1050 35 225 253
    450A 1150 40 285 330
    500A 1250 40 365 415
    600A 1400 47 455 530
    700A 1600 56 500 590
    800A 1750 63 563 670
    900A 1900 73 580 765

  • Motor type

    Motor type
    Motor type
      Height
    (H)     		Weight(kg)
    L1 L2
    50A 456 43 53
    80A 550 50 60
    100A 605 60 70
    125A 666 70 80
    150A 770 85 100
    200A 769 100 115
    250A 992 128 145
    300A 1310 145 220
    350A 1413 220 255
    400A 1589 265 293
    450A 1674 335 380
    500A 1794 415 456
    600A 2017 505 580
    650A 2091 528 610
    700A 2185 570 660
    750A 2237 600 690
    800A 2288 633 740
    900A 2424 650 835

  • Type of Dimensions from inlet to outlet

    L1 : Small of Dimensions from inlet to outlet L2 : Middle of Dimensions from inlet to outlet
    Small of Dimensions from inlet to outlet L1 Small of Dimensions from inlet to outlet
    Middle of Dimensions from inlet to outlet L1 Small of Dimensions from inlet to outlet
Dimensions from inlet to outlet [수도용 나이프 게이트밸브(수도용 밸브 적합기준) / AWWA C520 / MSS SP-135]
Size
Pressure class
800A 900A 1000A 1200A 1350A 1400A 1500A 1600A 1800A 2000A 2200A 2400A 2600A 2800A 3000A
Small of Dimensions from inlet to outlet
(mm) L1		 10K / 150LB 206 226 226 292 292 292 320 320 320 320 360 360 360 400 400
20K / 300LB 267 304
Small of Dimensions from inlet to outlet
(mm) L1		 10K / 150LB 356 356
20K / 300LB 570 570
Torque
(N.m)		 10K / 150LB 104 116 140 230 320 400 520 700 950 1150 1300 1500 1800 2200 2600
20K / 300LB 270 310
